LiftMaster Specialty Overhead Door Operator
HCTDCUL
Ideal for parking garages and commercial applications. Engineered to increase uptime and provide powerful, reliable performance. Noise-isolating design provides for exceptionally smooth and quiet operation. Selectable speed control opens up to 11″ inches per second to keep traffic flowing.
– Special Features –
- Easy Access Control – Integrates easily with LiftMaster Access Control Technology such as CAPXL Connected Access Portal or the CAP2D Door Controller.
- Securely Monitor and Control – Securely monitor and control gates and doors with myQ® smartphone app (requires additional Internet Gateway unit).
- Security+ 2.0® – Safeguards access to a property with an encrypted signal to virtually eliminate interference and offer extended range with Security+ 2.0.
- Quick Close Feature – Prevent unauthorized access with quick close feature that stops vehicles from tailgating.
- UL Listed – Tested to the most stringent UL 325 industry guidelines. Secondary entrapment devices need to be added to meet UL325 standards. Your Installer will recommend suitable secondary entrapment devices for your installation, such as photo eyes or edge sensors.
- Gate Safety Sensors – Protect people entering or leaving your garage with safety sensors that stop the gate or door from closing on obstructions.
-
Download the Specialty Overhead Operator HCTDCUL Brochure
Download

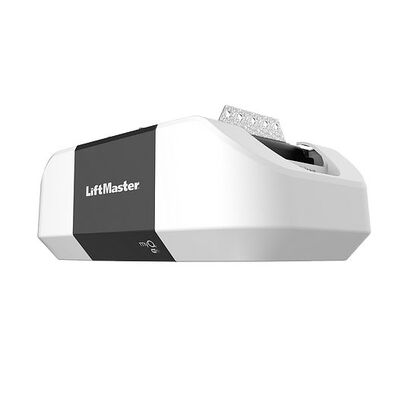

LiftMaster Light-Duty Commercial Door Operator
ATSW
Built-in Wi-Fi enables access to myQ® or myQ Business™. Dual-rated for residential and commercial doors; tested and approved for commercial duty cycle requirements. Ceiling mount for standard lift sectional doors. Ideal for structures for storage and manufacturing.
– Special Features –
- Monitor and Control – myQ® technology enables monitoring and control of the operators through a mobile app.
- Facility’s Network – Easily connect the operator to the facility’s network with built-in Wi-Fi®.
- Real-time alerts – Indicate the status of doors via email or push notifications.
- Safety Standards – Meets UL 325 Safety Standards.
- Commercial Safety Sensors – Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
-
Download the LiftMaster ATS Light-Duty Door Operator Brochure
Download
LiftMaster Medium-Duty Trolley Operator
MT
For use on standard-lift sectional overhead doors with mid-range duty-cycle requirements. Rated duty cycle: Maximum 12 cycles per hour; Less than 50 cycles per day. Suspends from ceiling directly attaches and controls a sectional door. Trolley with disconnect disengages operator for manual lifting in an emergency.
– Special Features –
- Security+ – Built-in 3-Channel Security+ Receiver allows you to learn/program up to 20 LiftMaster 315 MHz remote controls.
- Safety Standards – Meets UL 325 Safety Standards.
- Commercial Safety Sensors – Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
- Timer to Close – Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.
-
Download the LiftMaster Medium-Duty Trolley Operator Brochure
Download
LiftMaster Apartment Trolley Operator
APT
For use on high-cycle, sectional overhead apartment doors. Rated duty cycle: Over 100 cycles per day. Rental & retail environments. Resilient-mount motor ensures quiet operation. Quick disconnect trolley with auto-reconnect saves time and eases reconnection.
– Special Features –
- Safety Standards – Meets UL 325 Safety Standards.
- Commercial Safety Sensors – Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
- Timer to Close – Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.
- Security+ 2.0® – Safeguard facility access with Security + 2.0 technology, opening for registered devices only.
- Monitor and Control – myQ® technology enables monitoring and control of the operators through a mobile app.
- Real-time alerts – Indicate the status of doors via email or push notifications.
-
Download the LiftMaster Apartment Trolley Operator Brochure
Download
LiftMaster Medium Duty Hoist Operator
MH
For use on smaller, lighter commercial doors with mid-range duty cycle requirements. Rated duty cycle: Maximum 12 cycles per hour; Less than 50 cycles per day. Wall mount for high or vertical lift sectional doors or small rolling doors and grilles. Chain hoist with electric interlock for manual operation in an emergency.
– Special Features –
- Wall mounted untie that is ideal for rolling sheet doors which require slower speeds
- Security+® – Built-in 3-Channel Security+ Receiver allows you to learn/program up to 20 LiftMaster 315 MHz remote controls.
- Safety Standards – Meets UL 325 Safety Standards.
- Commercial Safety Sensors – Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
- Timer to Close – Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.
-
Download the LiftMaster Medium Duty Hoist Operator Brochure
Download
LiftMaster Gear Hoist Operator
GH
For use on heavy industrial, high-cycle doors. Lubricated gear system and numerous custom modifications. Rated duty cycle: 25 per hour; Greater than 90 cycles per day. Larger/heavier sectional overhead doors. Side mounts to the wall for vertical or high-lift doors. Larger/heavier rolling door and grilles.
– Special Features –
- Monitor and Control – myQ® technology enables monitoring and control of the operators through a mobile app.
- Real-time alerts – Indicate the status of doors via email or push notifications.
- Safety Standards – Meets UL 325 Safety Standards.
- Commercial Safety Sensors – Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
- Timer to Close – Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.
- Security+ 2.0® – Safeguard facility access with Security + 2.0 technology, opening for registered devices only.
-
Download the LiftMaster Gear Hoist Operator Brochure
Download
Raynor ControlHoist™ 2.0 Optima Commercial Operator
Designed for larger sectional doors, rolling doors and higher-cycle applications, the Raynor ControlHoist 2.0 Optima is a heavy-duty, gear driven door operator that is built with a continuous-duty, overload protected motor with high starting torque. All units feature heavy-duty industrial ball bearings, worm gear drive in oil bath and an electromechanical brake. Innovative features along with durable mechanical design, provide consistent and reliable operation for the most stringent applications.
– Special Features –
- Entrapment – UL 325 2010 requires all commercial operators to be either constant pressure to close or be equipped with an approved monitored entrapment protection device such as a monitored photo eye or reversing edge. All ControlHoist 2.0 commercial operators are provided standard with constant pressure to close. Up to two (2) monitored entrapment devices can be selected with all ControlHoist 2.0 operators. In addition a non-monitored entrapment device can also be selected
- LCD (Liquid Crystal Display) – The 16 character LCD display allows for easy programming with an intuitive set up menu. Status indicators provide real-time status and display error messages for easy troubleshooting assistance.
- Cycle Counter – LCD (Liquid Crystal Display) clearly indicates the exact number of cycles logged for easy maintenance support.
- Fire Station Timer – Ideal for fire stations. A push button or pull cord can be used to activate the open cycle and timer to close feature. Only the push button or pull cord will control the timer to close.
- Programmable Mid-Stop – Adjustable from 3-30 seconds, this feature enables partial opening of door to a preprogrammed position for energy savings, time savings and convenience.
- Timer-To-Close – Closes the door automatically after a predetermined amount of time has elapsed for security and convenience.
- Ventilation Feature – When a device such as a CO detector is activated, door will partially open for a pre-determined amount of time. Once the CO detector is clear, the door will close.
- Motor – Continuous-duty, overload protected motor with high starting torque.
- Drive Reduction – V-Belt drive from motor to full ball bearing power train with additional chain and sprocket reduction.
- Electro Magnetic Brake System – 24V DC brake. Fewer mechanical parts for improved reliability.
- Adjustable Friction Clutch – Helps to protect the door and operator from damage should it come into contact with any obstruction.
- 3-Button Control Station – Provides open/close/stop functions.
- Exterior Radio Control Terminal – Provides for fast and easy connection of radio controls. When range is an issue, an external mounted radio receiver allows the flexibility for the receiver to be moved to a new location for improved range.
- Removable Terminal Strip – The two-piece, snap in place, removable terminal strip allows for easy wiring as opposed to competitive product that only offers a traditional stationary terminal strip.
-
Download the Raynor ControlHoist™ 2.0 Optima Commercial Operator Brochure
Download
Raynor ControlHoist™ 2.0 Standard Commercial Operator
The Raynor ControlHoist 2.0 Standard is medium-duty, belt-drive operator, designed for high cycle applications and use on standard to larger size sectional doors, rolling door and grilles. Innovative features, along with durable mechanical design, offer a consistent and reliable performance day in and day out.
– Special Features –
- Entrapment – UL 325 2010 requires all commercial operators to be either constant pressure to close or be equipped with an approved monitored entrapment protection device such as a monitored photo eye or reversing edge. All ControlHoist 2.0 commercial operators are provided standard with constant pressure to close. Up to two (2) monitored entrapment devices can be selected with all ControlHoist 2.0 operators. In addition a non-monitored entrapment device can also be selected
- LCD (Liquid Crystal Display) – The 16 character LCD display allows for easy programming with an intuitive set up menu. Status indicators provide real-time status and display error messages for easy troubleshooting assistance.
- Cycle Counter – LCD (Liquid Crystal Display) clearly indicates the exact number of cycles logged for easy maintenance support.
- Fire Station Timer – Ideal for fire stations. A push button or pull cord can be used to activate the open cycle and timer to close feature. Only the push button or pull cord will control the timer to close.
- Programmable Mid-Stop – Adjustable from 3-30 seconds, this feature enables partial opening of door to a preprogrammed position for energy savings, time savings and convenience.
- Timer-To-Close – Closes the door automatically after a predetermined amount of time has elapsed for security and convenience.
- Ventilation Feature – When a device such as a CO detector is activated, door will partially open for a pre-determined amount of time. Once the CO detector is clear, the door will close.
- Motor – Continuous-duty, overload protected motor with high starting torque.
- Drive Reduction – Primary reduction is worm gear running in warm bath. Secondary reduction is by chain and sprocket.
- Electro Magnetic Brake System – 24V DC brake. Fewer mechanical parts for improved reliability.
- Adjustable Friction Clutch – Helps to protect the door and operator from damage should it come into contact with any obstruction.
- 3-Button Control Station – Provides open/close/stop functions.
- Exterior Radio Control Terminal – Provides for fast and easy connection of radio controls. When range is an issue, an external mounted radio receiver allows the flexibility for the receiver to be moved to a new location for improved range.
- Removable Terminal Strip – The two-piece, snap in place, removable terminal strip allows for easy wiring as opposed to competitive product that only offers a traditional stationary terminal strip.
-
Donwload the Raynor ControlHoist™ 2.0 Standard Commercial Operator Brochure
Download
-
Download the LiftMaster myQ Business Facility Cloud Based Access Management Brochure
- Download
